SF6 circuit breaker

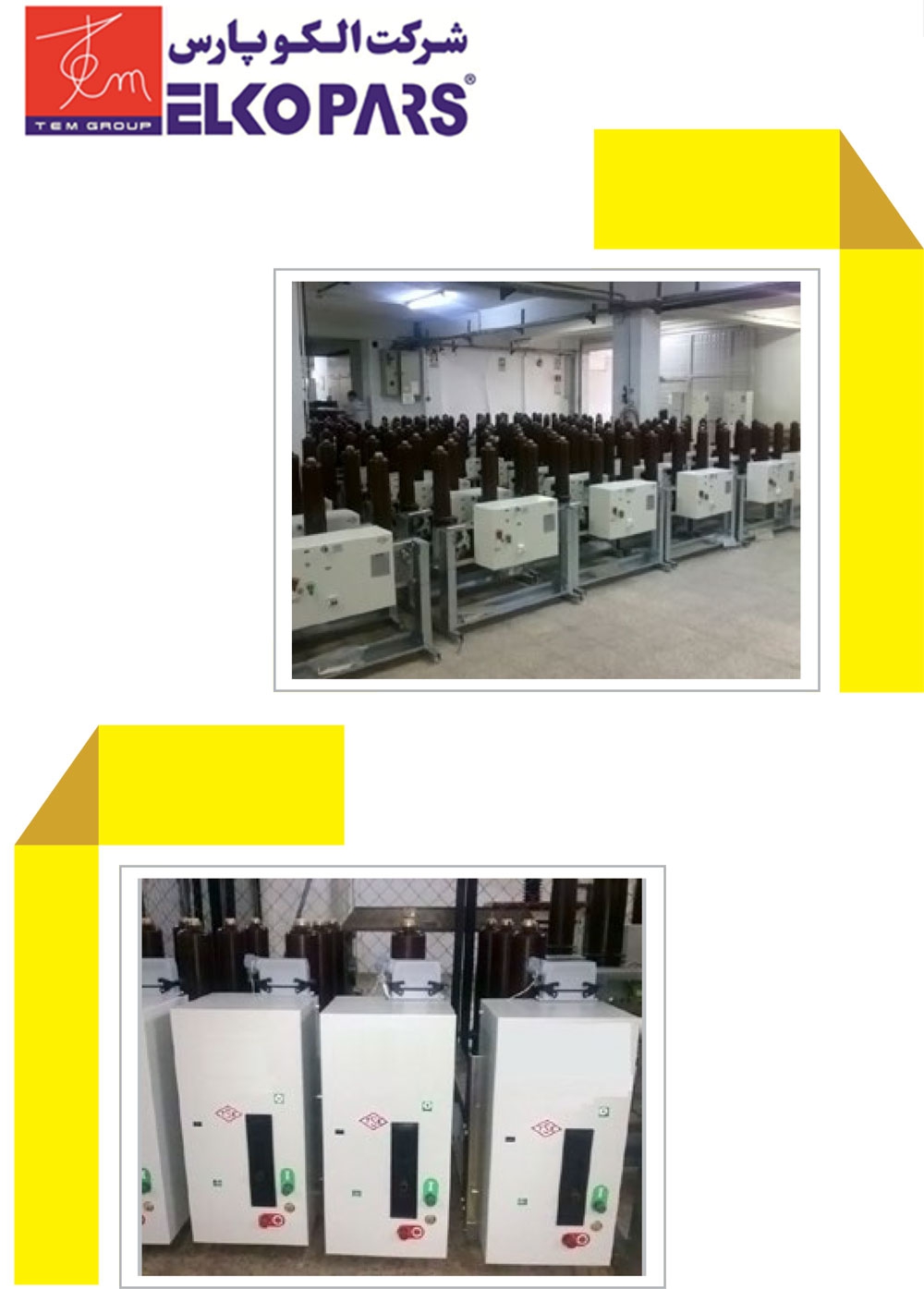

SF6 Circuit Breakers Frontal & Lateral (Left & Right Side)
SF6 gas is used as insulating and arc quenching medium within EGK/BGK types circuit breakers.
EGK/BGK breakers are suitable for rapid reclosing.

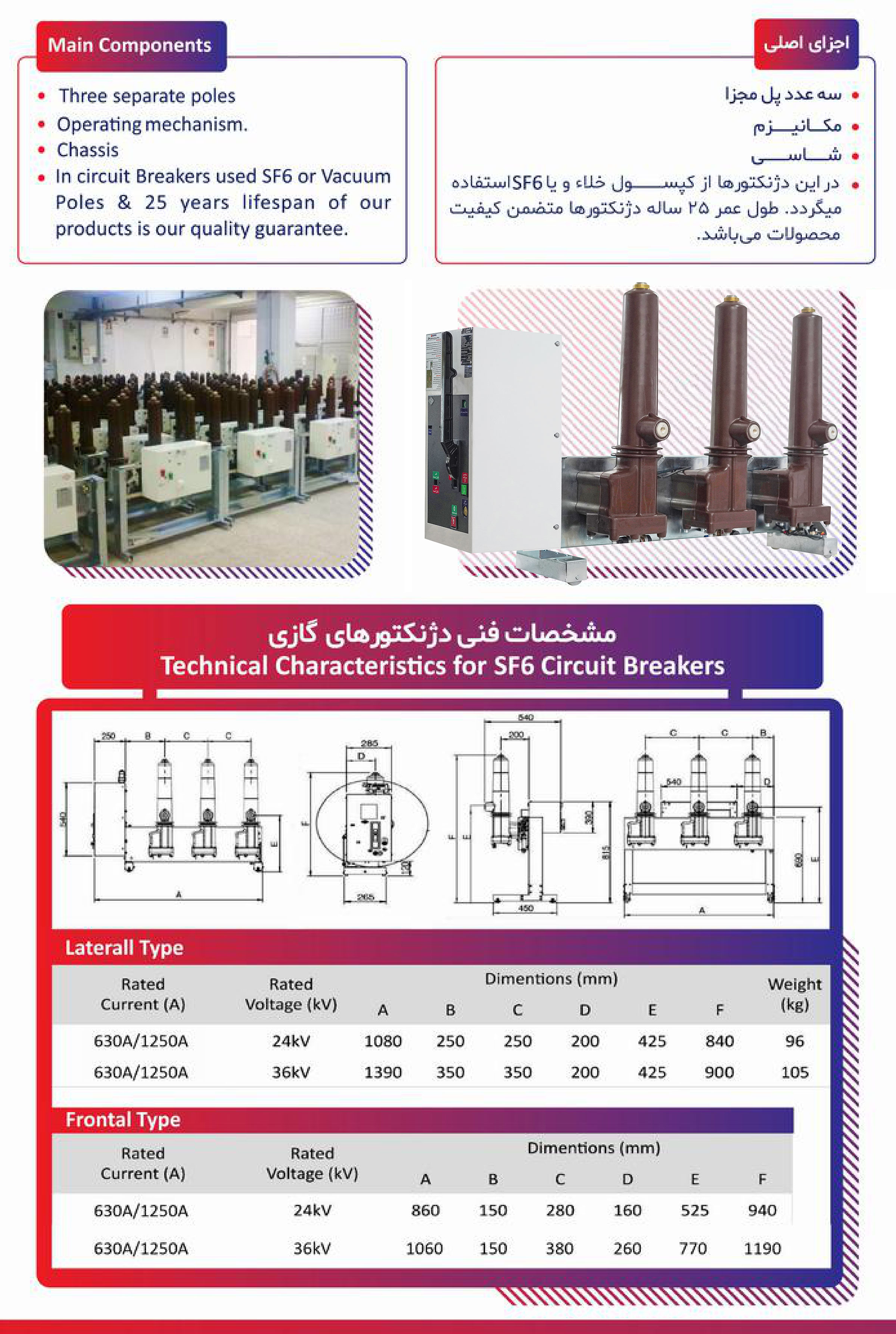

Main Components:
• Three separate poles (including electrically live parts) Pole housing is epoxy resin.
• Operating mechanism.
• Chassis
Sealed pressure system is used
for gas lightness. The gas leakage ratio of under 0.1% per year guarantees 25 years of lifecycle with no gas addition.
